🧰Our Products – MGP Engineering Pvt. Ltd.
Reliable. Durable. Engineered for Excellence.
At MGP Engineering Pvt. Ltd., we specialize in manufacturing and supplying a complete range of cable trays, electrical installation products, and custom-fabricated components for industrial and commercial applications.

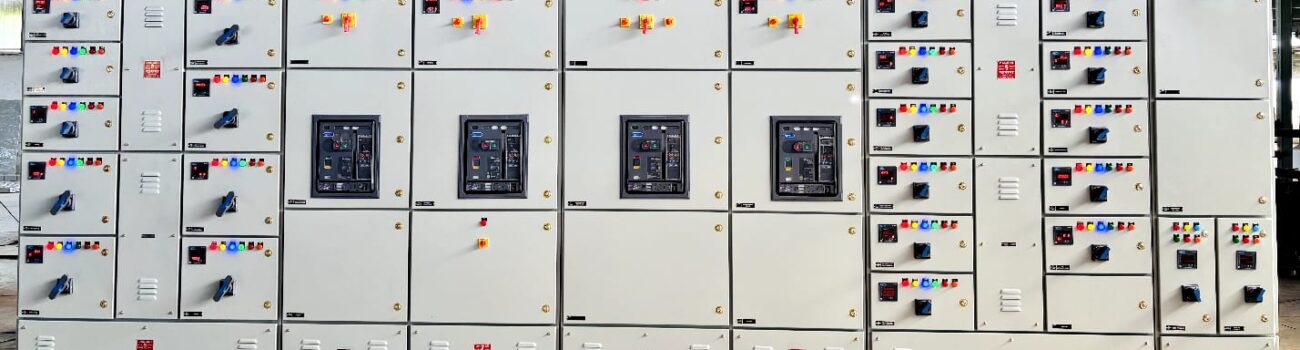

Our Product Range

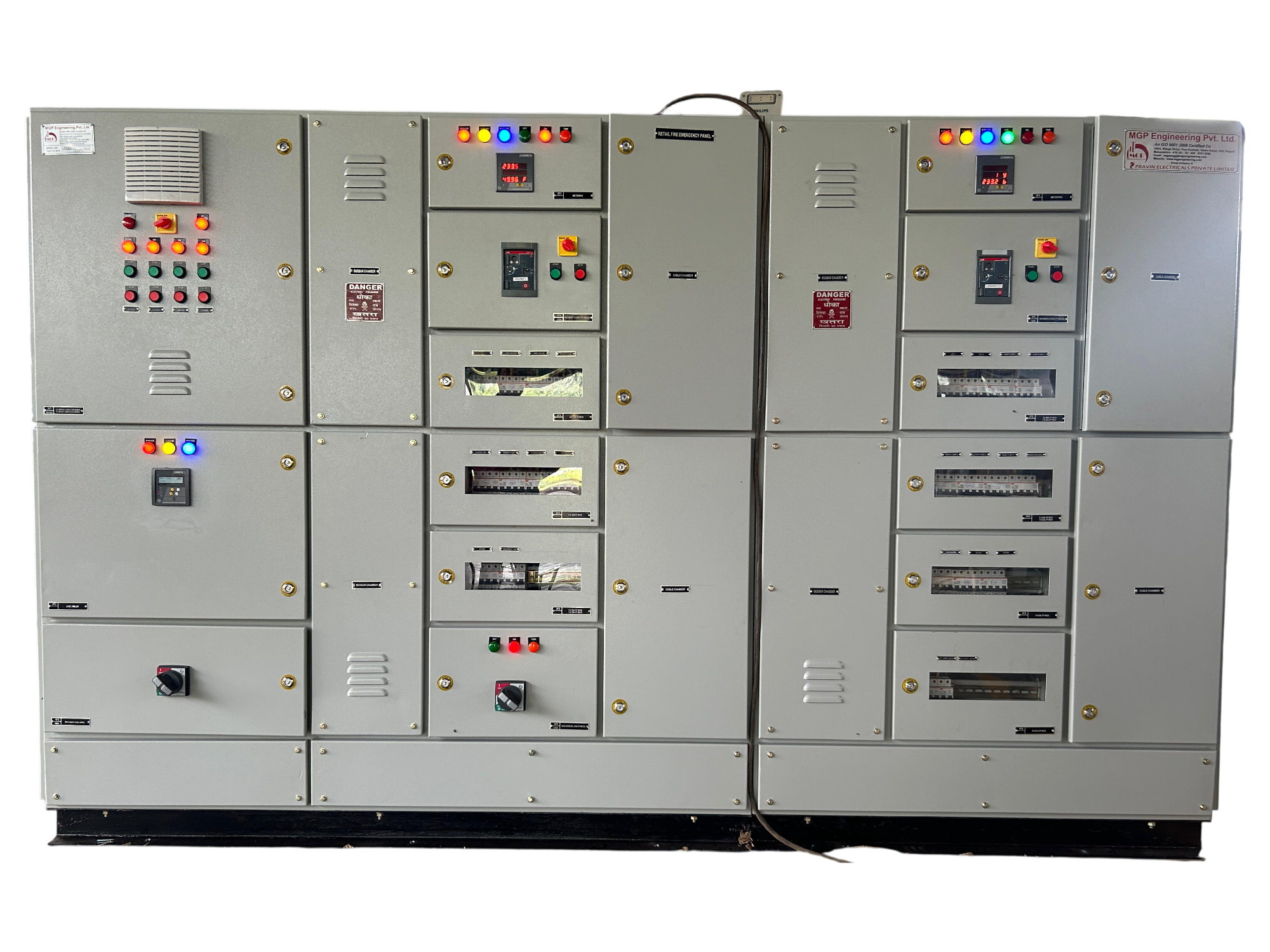

We offer a comprehensive and customizable range of electrical control panels and systems:
- Power Control Centres (PCC)
- Motor Control Centres (MCC)
- Air Insulated Bus Ducts
- Sandwich Type Bus Ducts (Schneider Make)
- PLC Panels & Process Control Panels
- DG Synchronizing & AMF Control Panels
- Automatic Power Factor Correction (APFC) Panels
- Mimic & Annunciation Panels
- Control Desks
- Lighting & Power Distribution Boards
- Outdoor Feeder Pillars
- Rising Mains
- VFD Drive Panels
- Custom-Built Non-Standard Panels
All our products are available in various finishes including pre-galvanized, hot-dip galvanized, powder-coated, and painted, tailored to your project requirements.

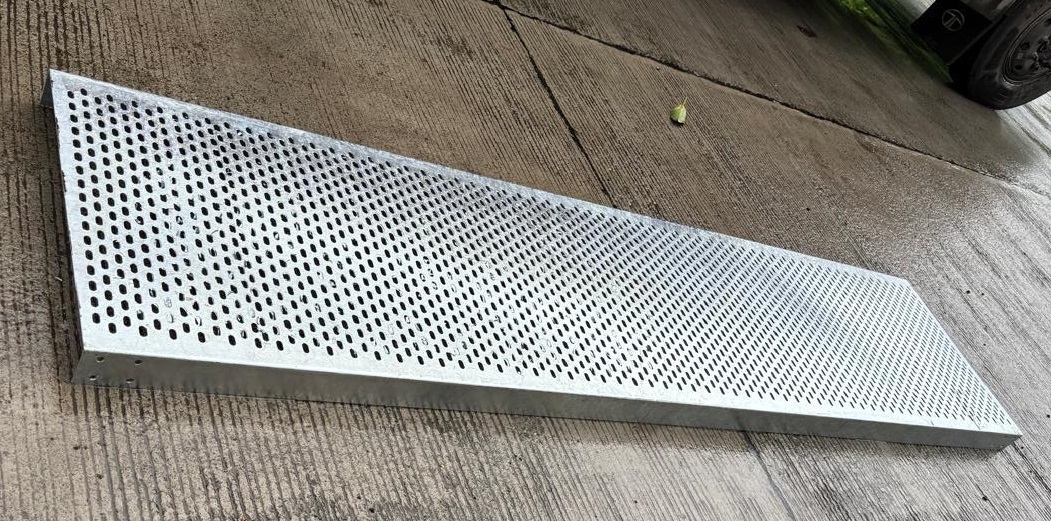

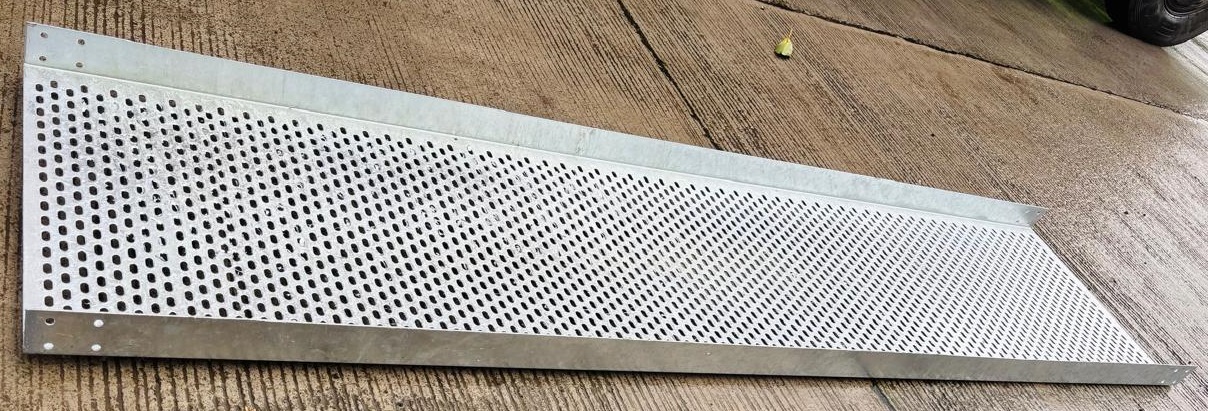

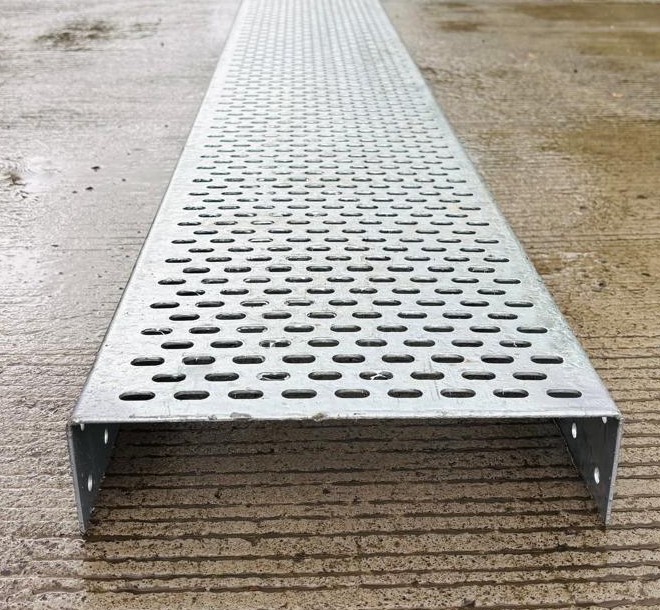

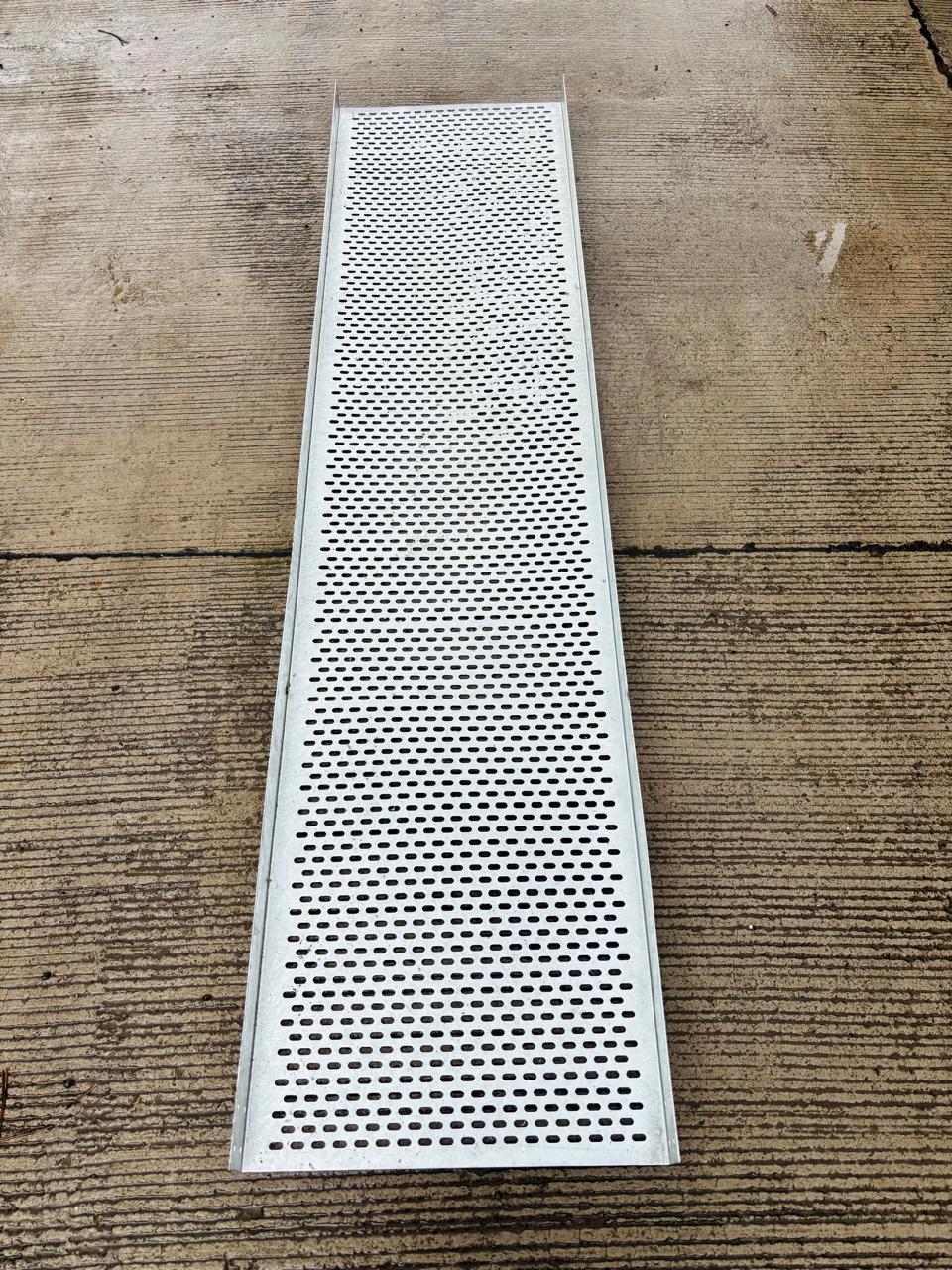

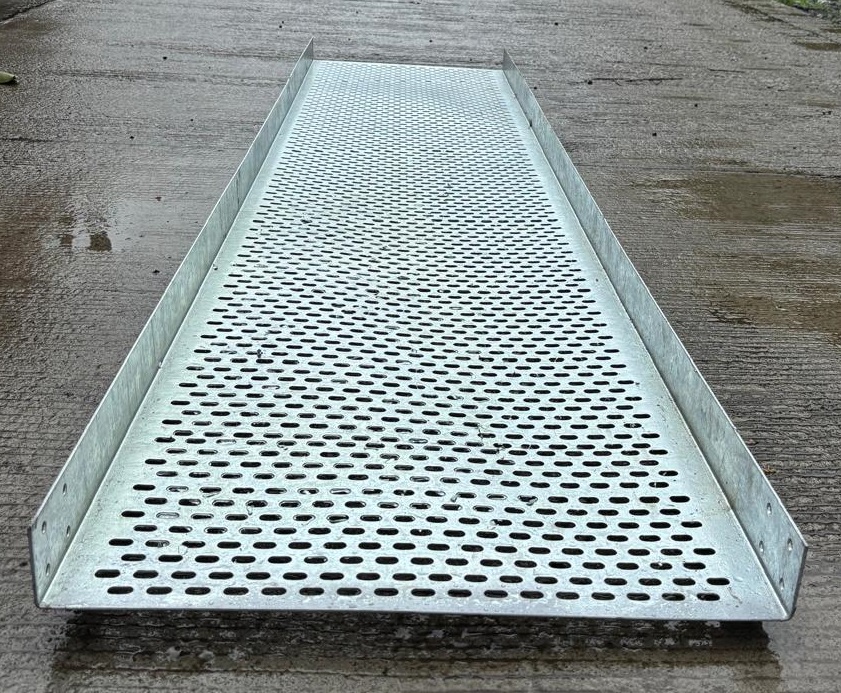

Perforated Cable Trays
Perforated Cable Trays
Cable Tray Features
- International Punch Pattern – Designed as per global standards, ensuring minimal distortion during manufacturing and installation.
- Optional Intermediate Coupler Holes – Provided on flange folds when specified by contract.
- Flange Options – Customers can choose between straight flange or reverse inward flange designs.
- Enhanced Bottom Coupling – For trays wider than 600 mm, bottom coupling ensures perfect alignment and minimizes joint deflection.
- Ease of Cutting – Generous spacing between punch lines allows easy shortening on-site.
- Custom Features – Additional cutouts and knockouts can be provided as per customer requirements.
Finishes Available
- Hot Dip Galvanized (HDG)
- Pre-Galvanized
- Aluminum
- Powder Coated (PC)
- HDG + PC
- Marine Grade Aluminum (for special applications)
Specifications
- Standard Lengths: 2500 mm / 3000 mm
- Certified: Electrical continuity and impact tested as per IEC 61537

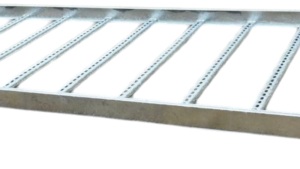

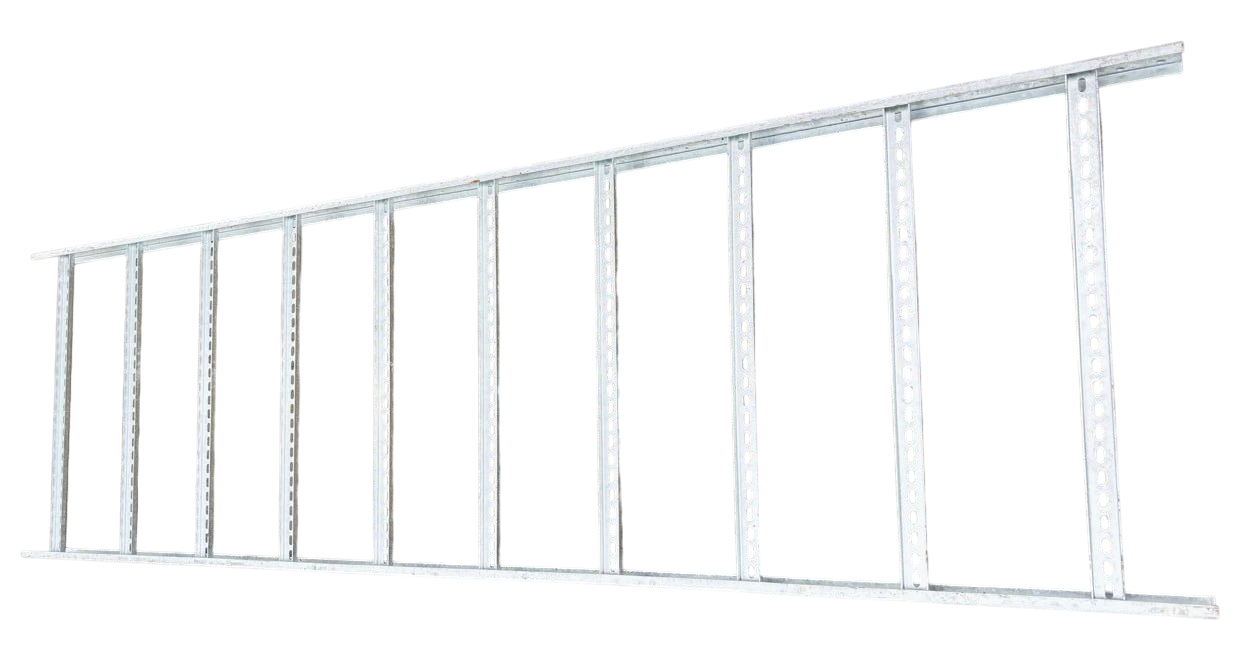

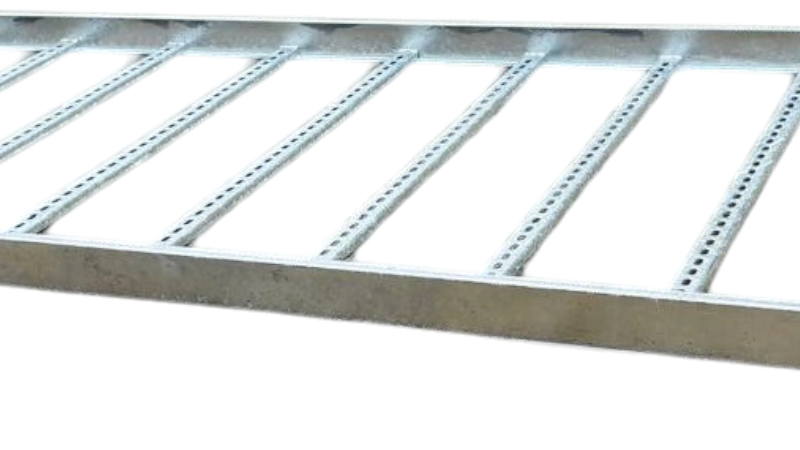

Ladder-Type Cable Trays
Cable Ladder Features
- Standardized Design: Uniform side rail and rung sections ensure faster delivery and consistency.
- Proven Strength: Load test data available for various sizes and combinations.
- Smart Coupler Holes: Intermediate coupler holes enable easy mounting of accessories like earth flats, provide ready coupling during cutting, and improve drainage during galvanizing. The hole pattern also indicates material thickness.
- Enhanced Bends: Larger bends with rungs welded to frames ensure superior hot-dip galvanization.
- Optimized Assembly: Ladder patterns adopted by MGP deliver better galvanizing results.
Available Finishes
- Hot Dip Galvanized (HDG)
- Pre-Galvanized
- Aluminum
- Powder Coated (PC)
- HDG + PC (for special applications)
Specifications
- Standard Lengths: 2500 mm / 3000 mm
- Certified: Electrical continuity and impact test as per IEC 61537

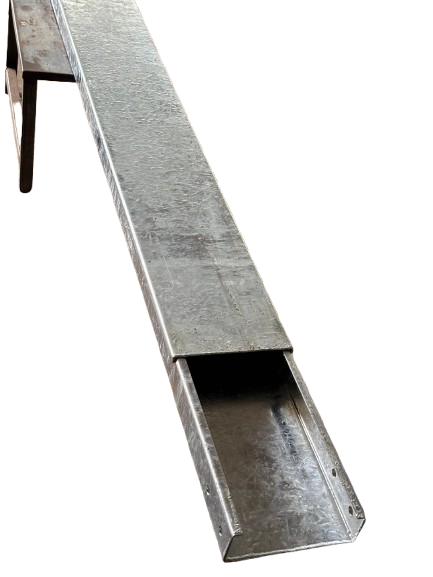

Raceway/ Trunking
Key Features
- Designed for a flush finish with carpet or tiles
- Matching junction boxes available in the same height as trunking
- Optional partitioning for widths above 75 mm (at minimum 50 mm intervals)
- 25 mm diameter knockouts can be provided on 50 mm height raceways
- Wide range of compatible accessories, similar to underfloor trunking
- Available in multiple finishes:
- Hot Dip Galvanized (HDG)
- Pre-Galvanized

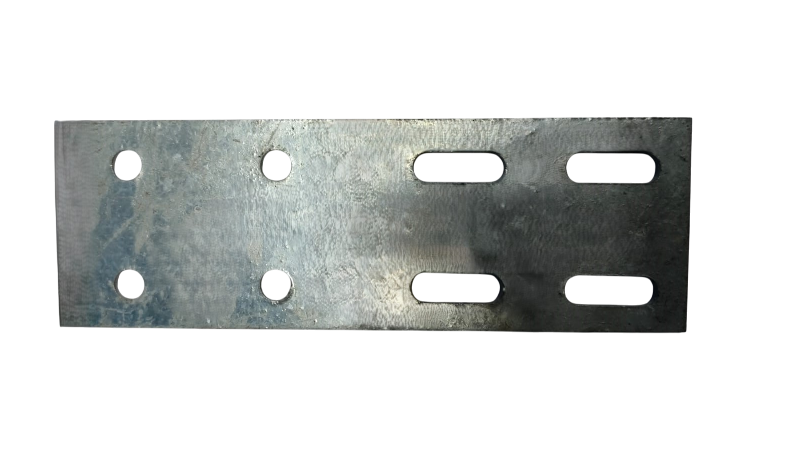

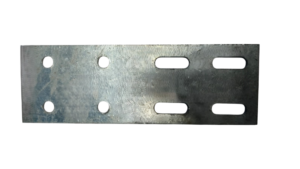

🔹 Cable Tray Accessories
·Horizontal Tee
- Used to connect three trays in a T-shape arrangement.
·90° Horizontal Elbow
- Used to turn the tray 90 degrees to the left or right.
·90° Vertical Up Elbow
- Used to route the tray upwards at a 90-degree angle.
·90° Vertical Down Elbow
- Used to route the tray downwards at a 90-degree angle.
·Vertical Tee Up
- Used to branch out upward from the main tray.
·Vertical Tee Down
- Used to branch out downward from the main tray.
·Horizontal Cross
- Used for four-way connections (cross arrangement).
·Reducer
- Used to reduce the width of the tray from larger size to smaller size.

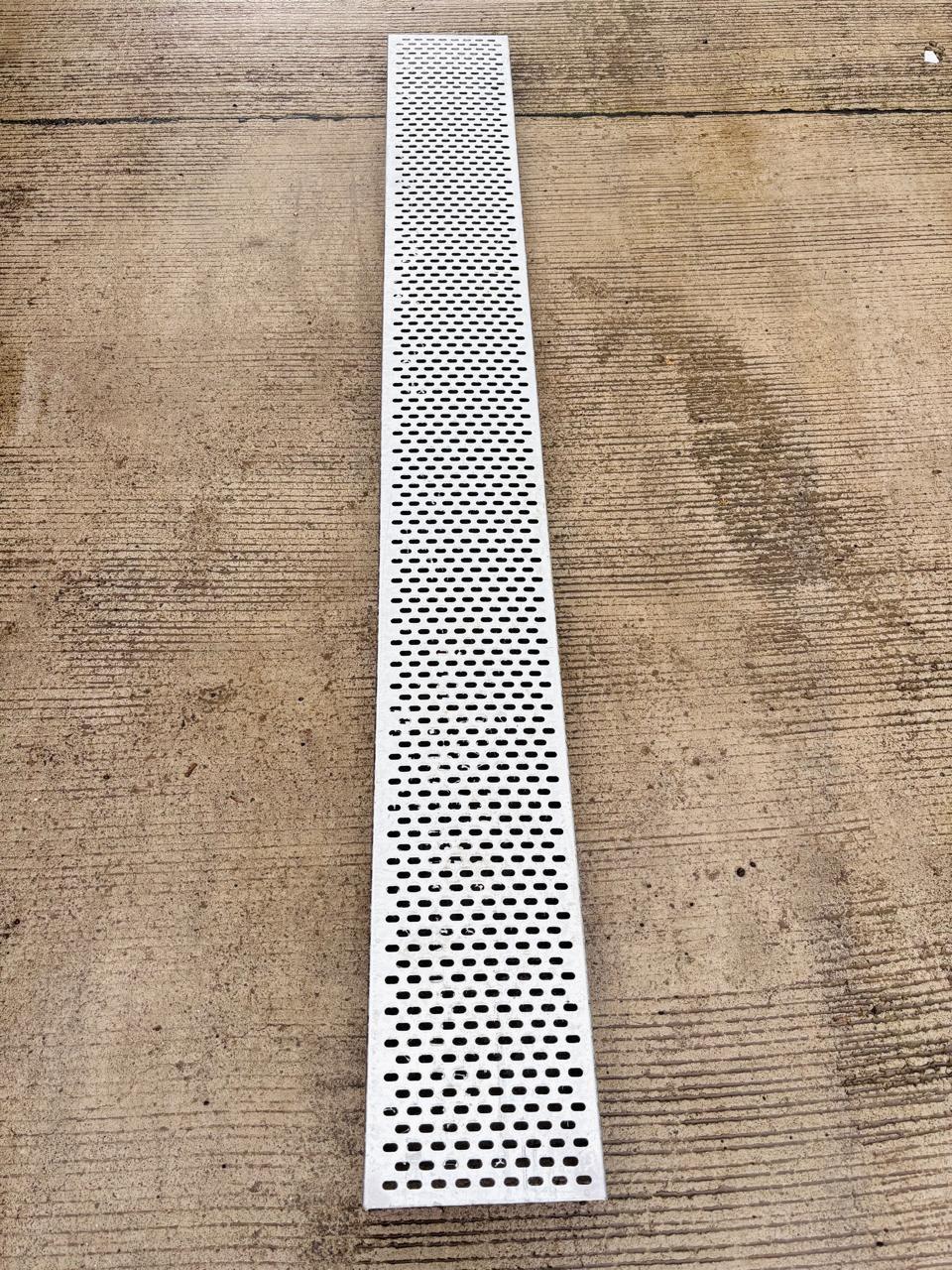

Punching (Horizontal Perforation)
- The bottom surface of the tray has horizontal slot-type perforations.
- Advantages:
- Allows easy fixing and arranging of cables.
- Provides better air circulation, reducing heat build-up.
- Facilitates installation of cable ties and clamps.
- Reduces overall weight while maintaining strength.

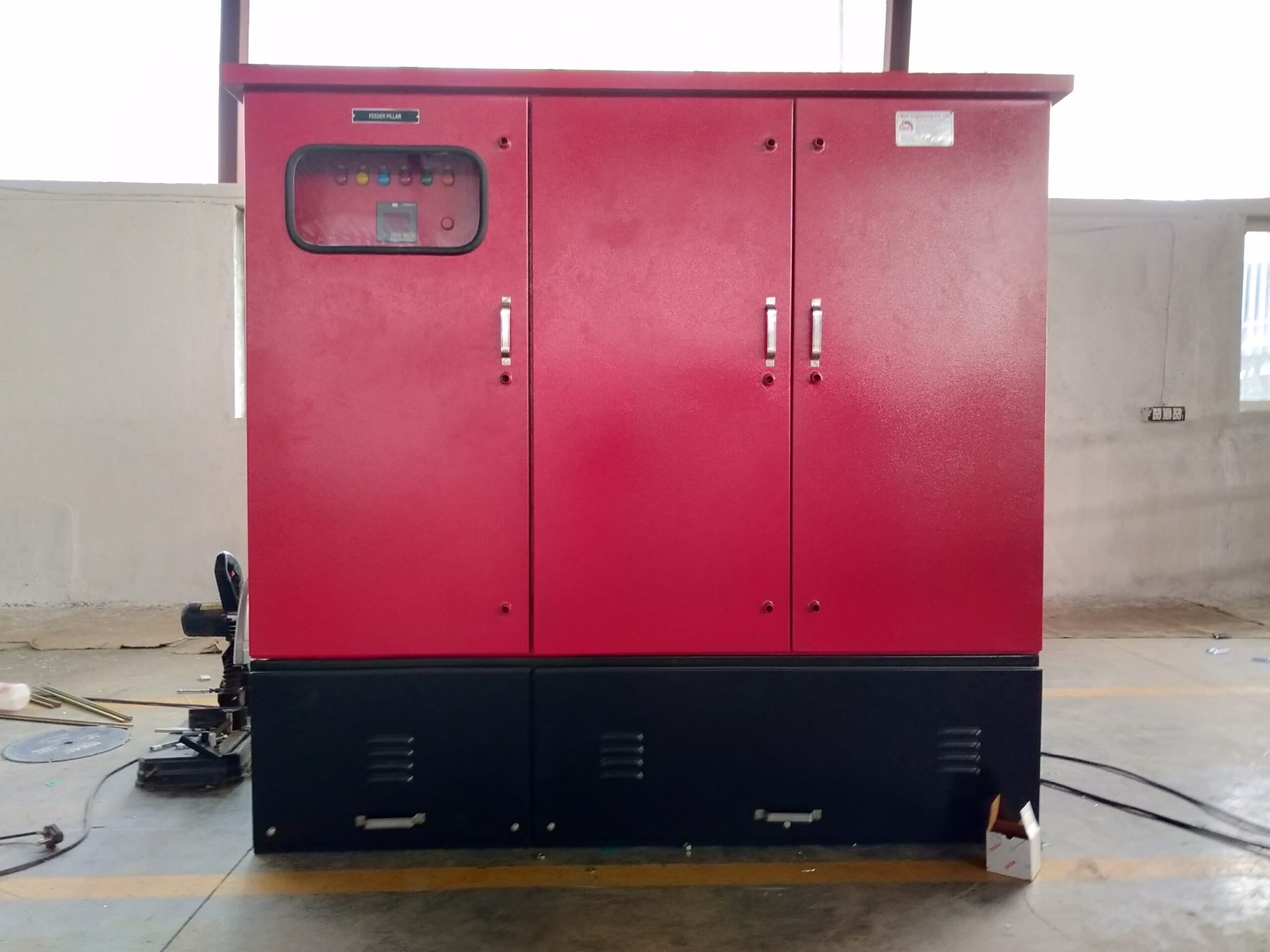

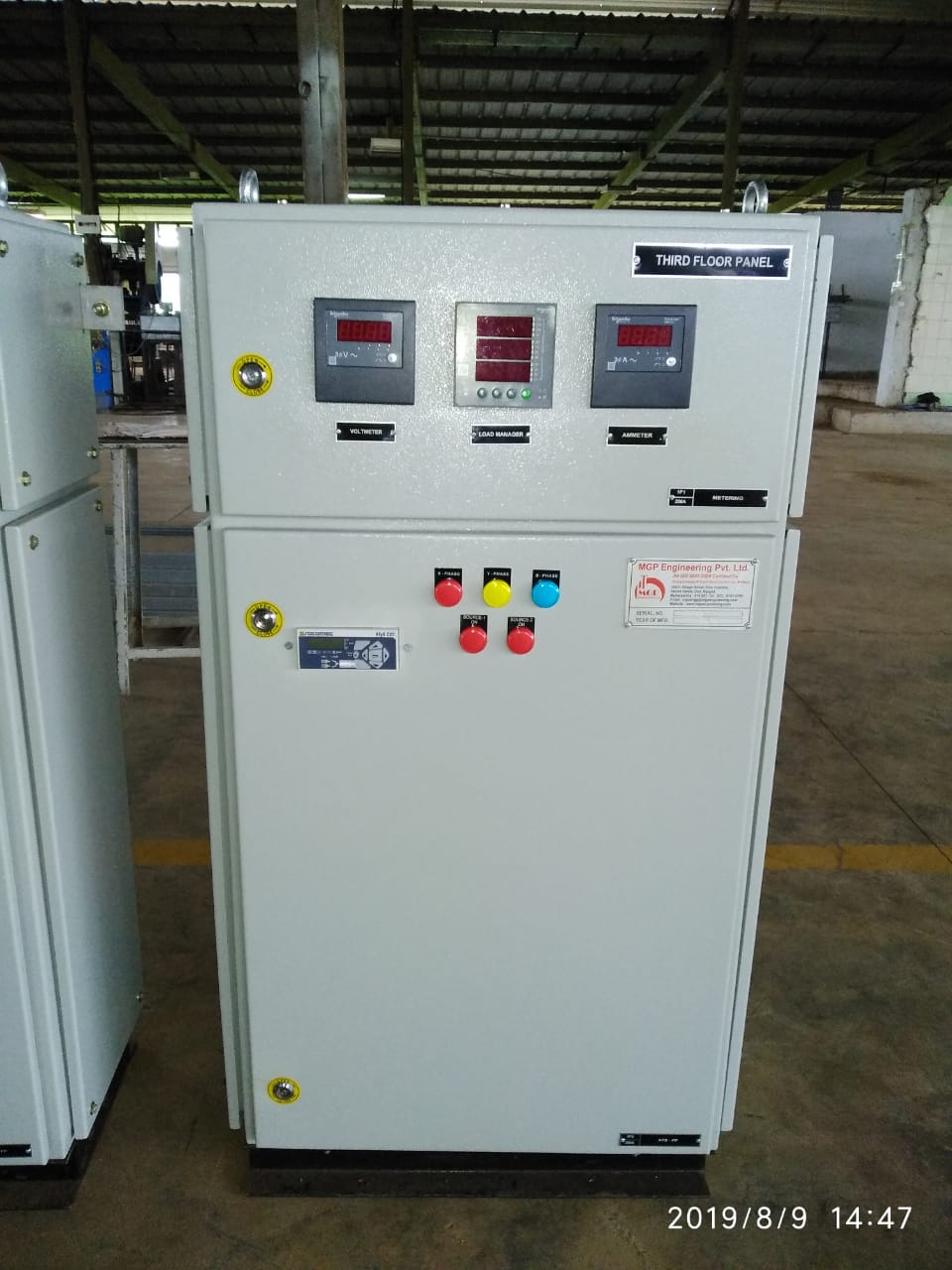

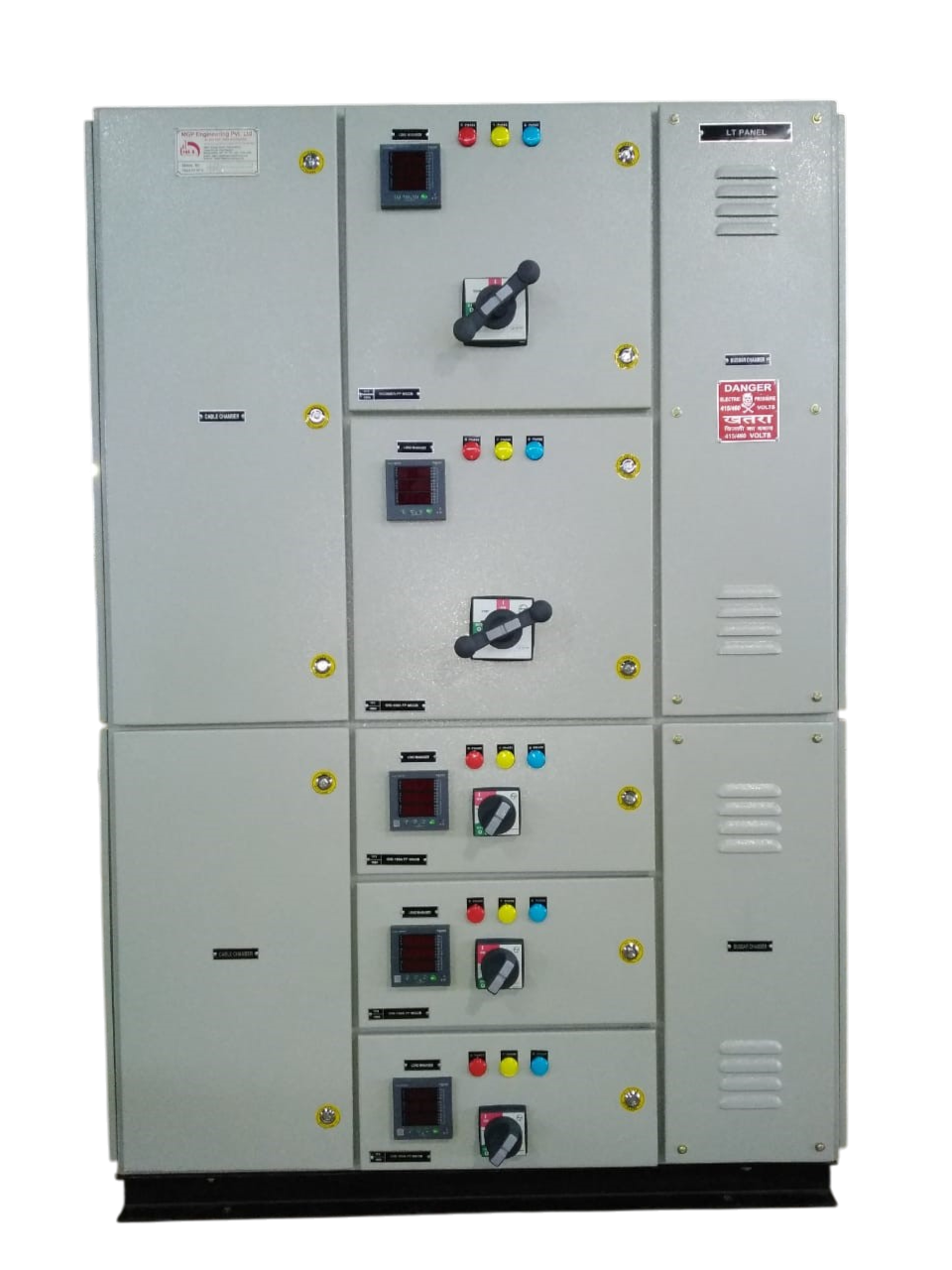

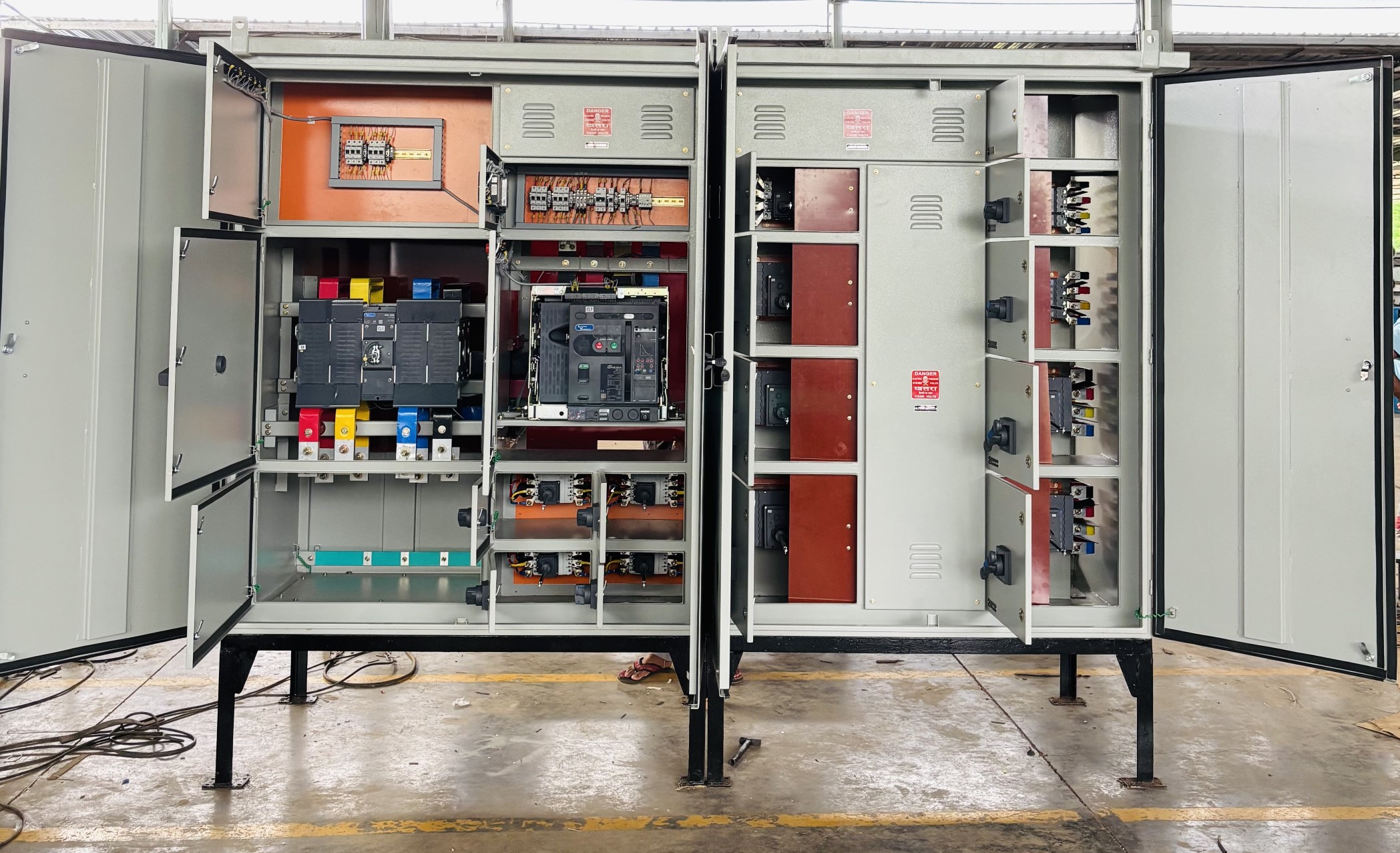

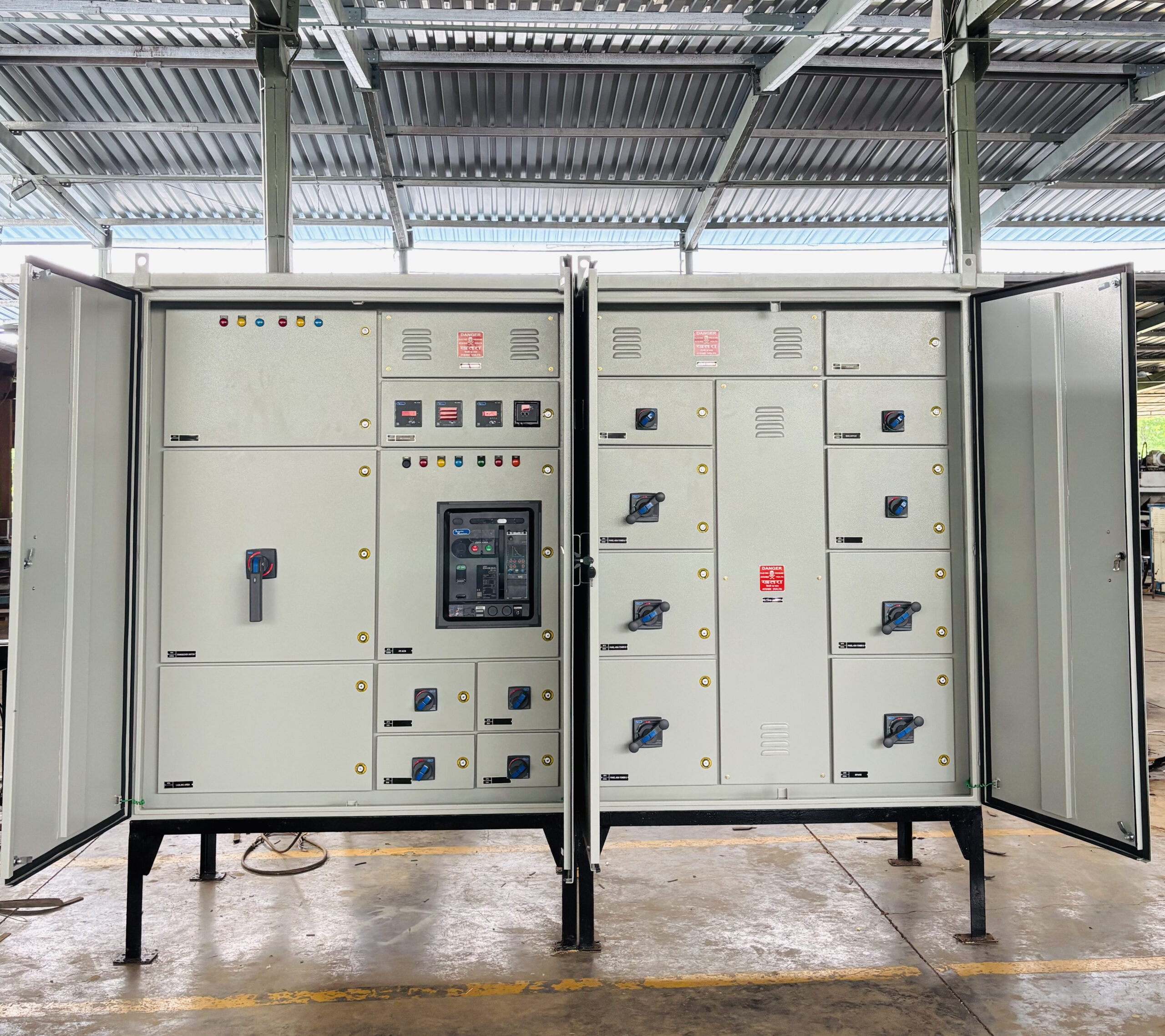

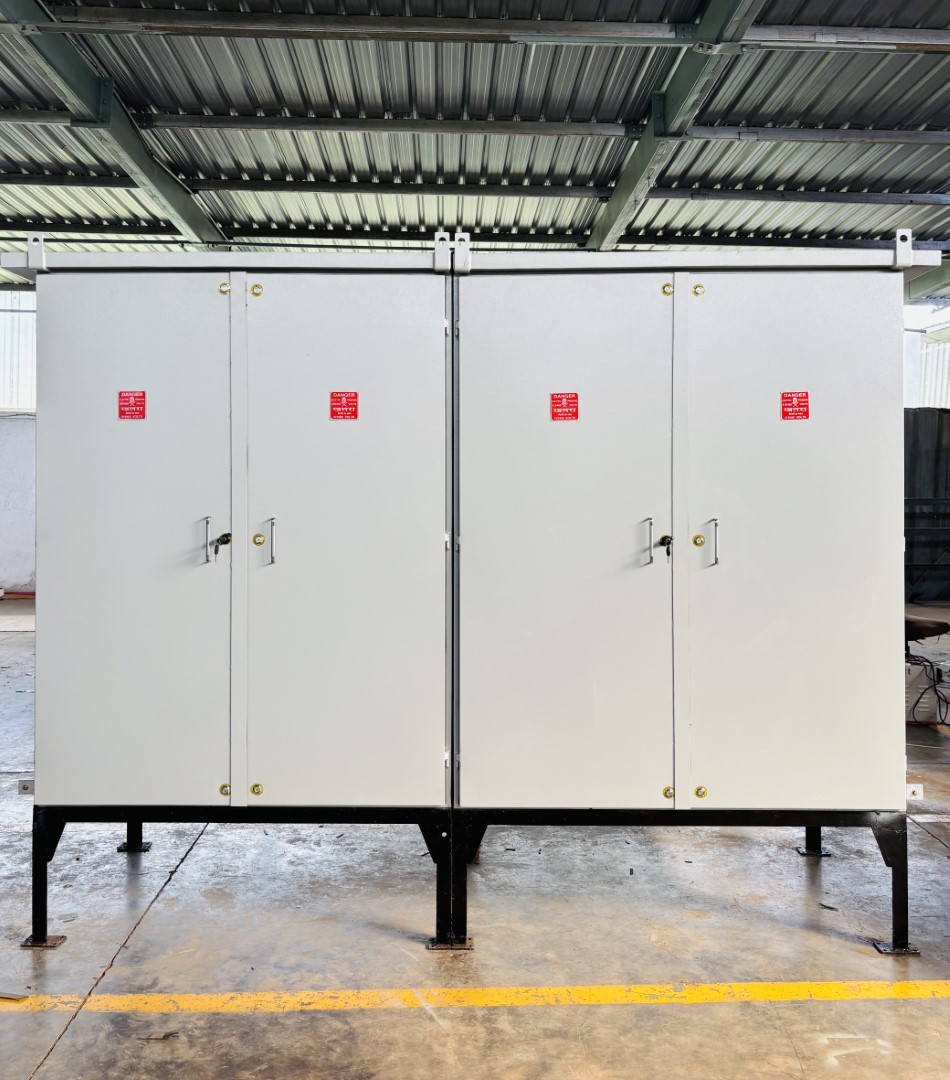

Distribution Boards & Custom Fabrication
- Construction & Material
- Manufactured from CRCA sheet steel (1.6 mm / 2.0 mm).
- Powder-coated / epoxy-coated finish (60–80 microns).
- Available in indoor and outdoor types with protection levels (IP42 / IP52 / IP-54/ IP65/ IP66).
- Types of Boards

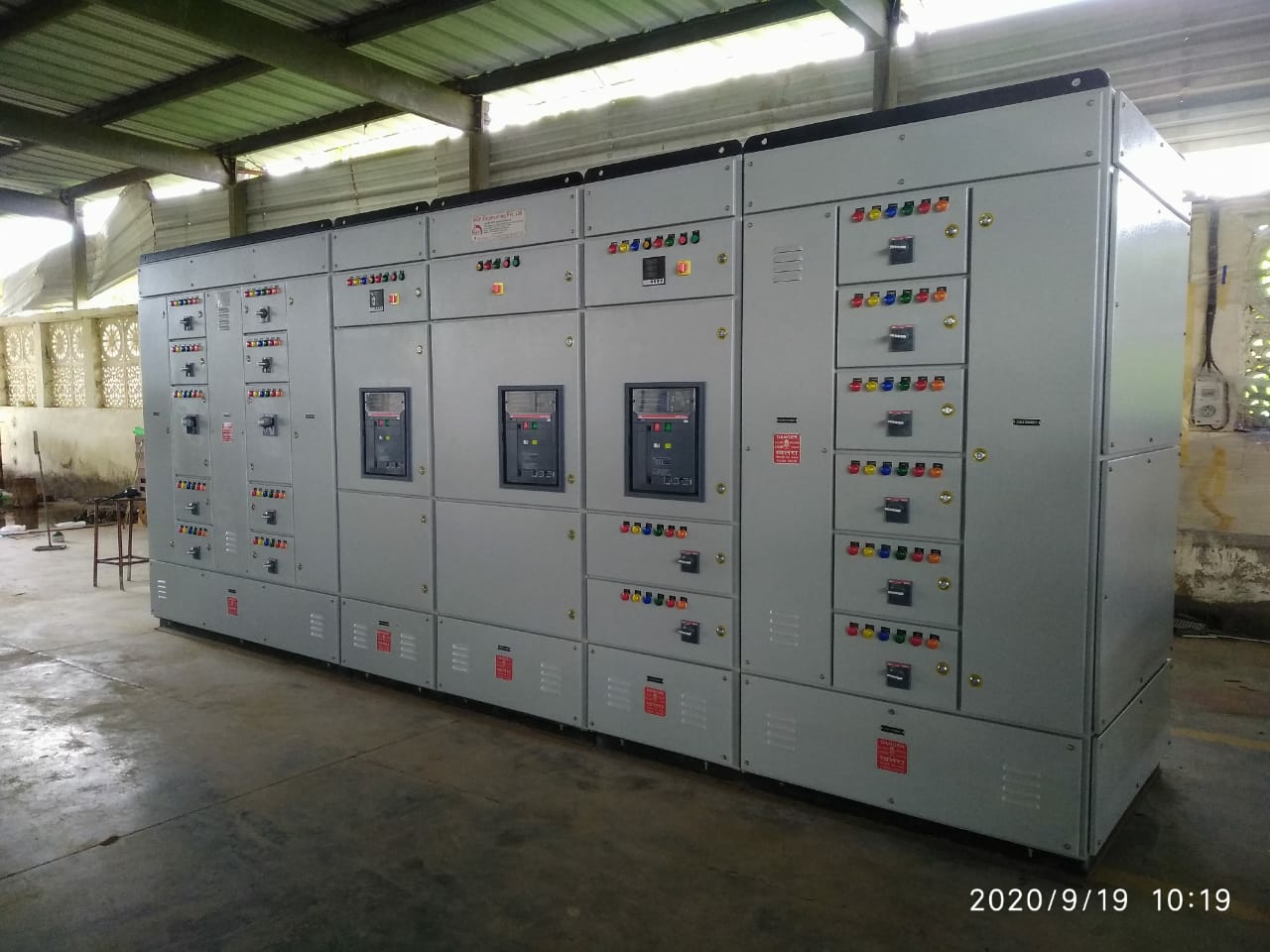

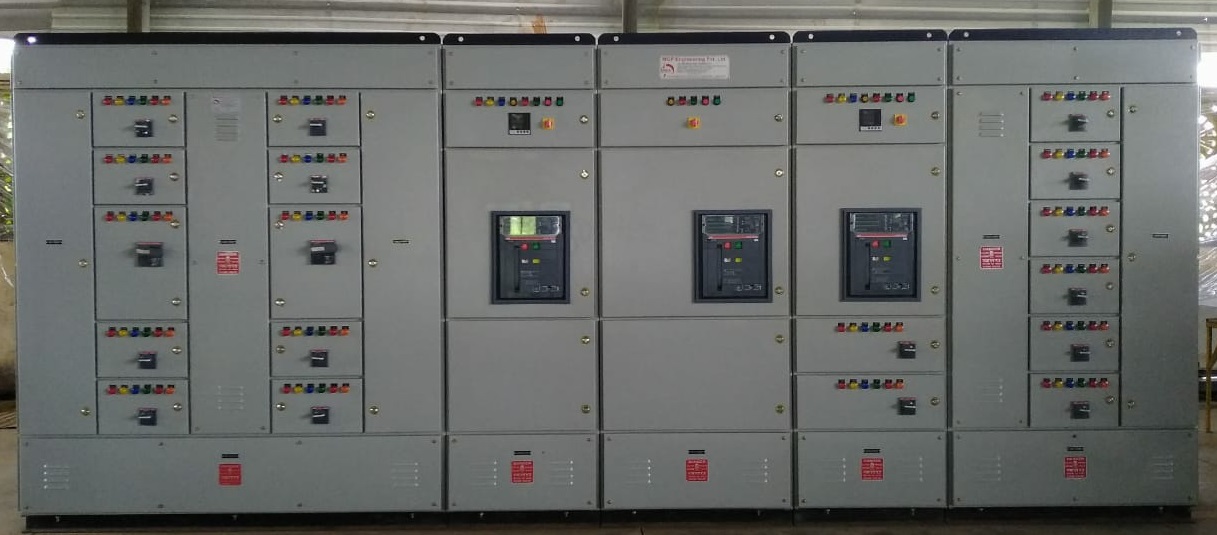

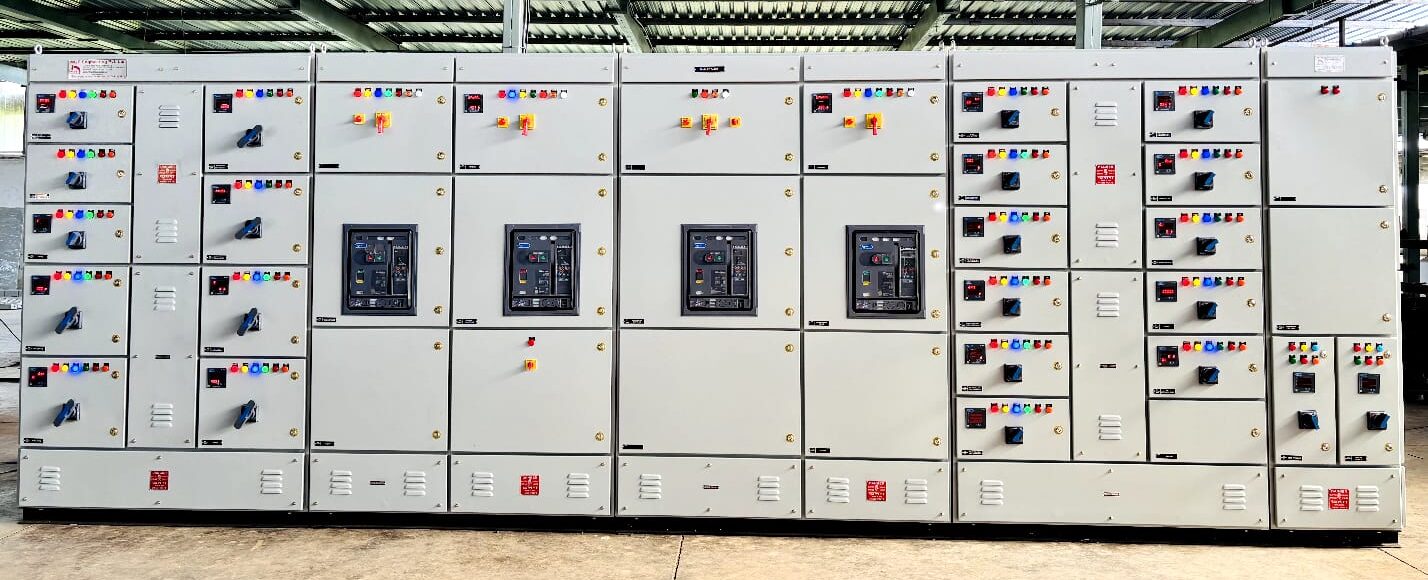

- Power Control Centre (PCC)

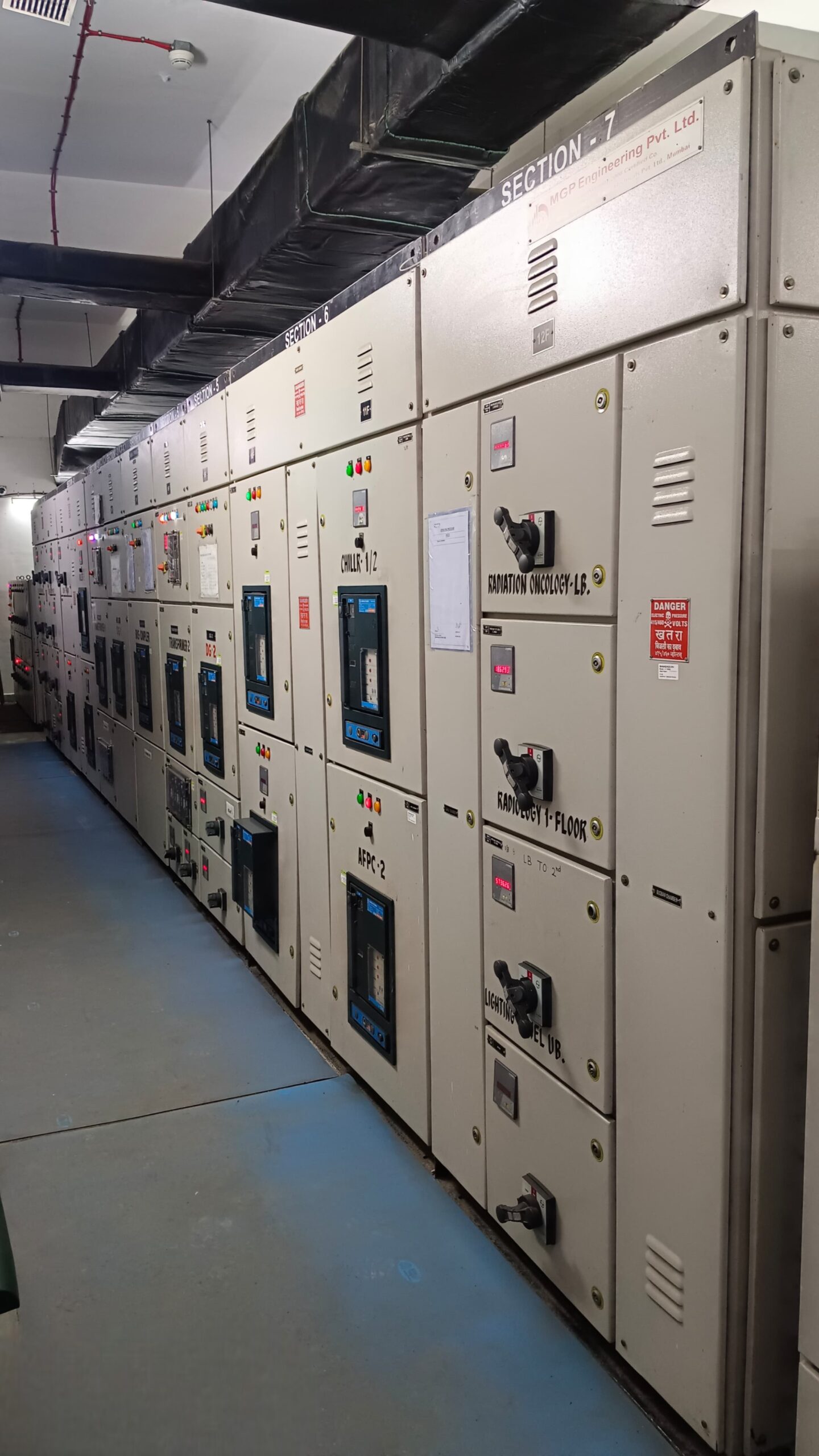

- Main Dist. Board (MDB)
- Lighting Distribution Boards (LDB)
- Power Distribution Boards (PDB)

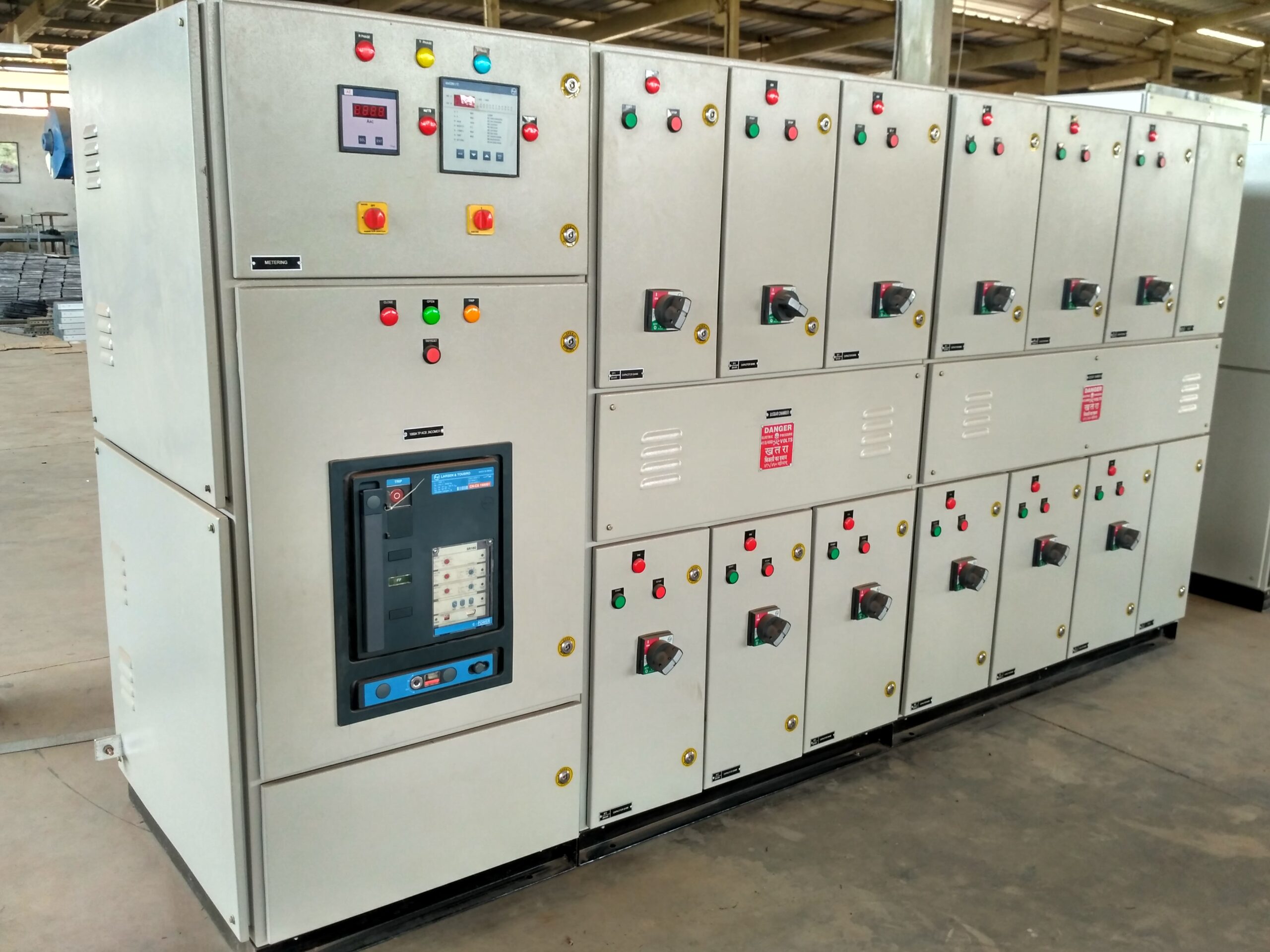

- Motor Control Centers (MCC)
- Air Conditioning Distribution Boards
- Feeder Pillars

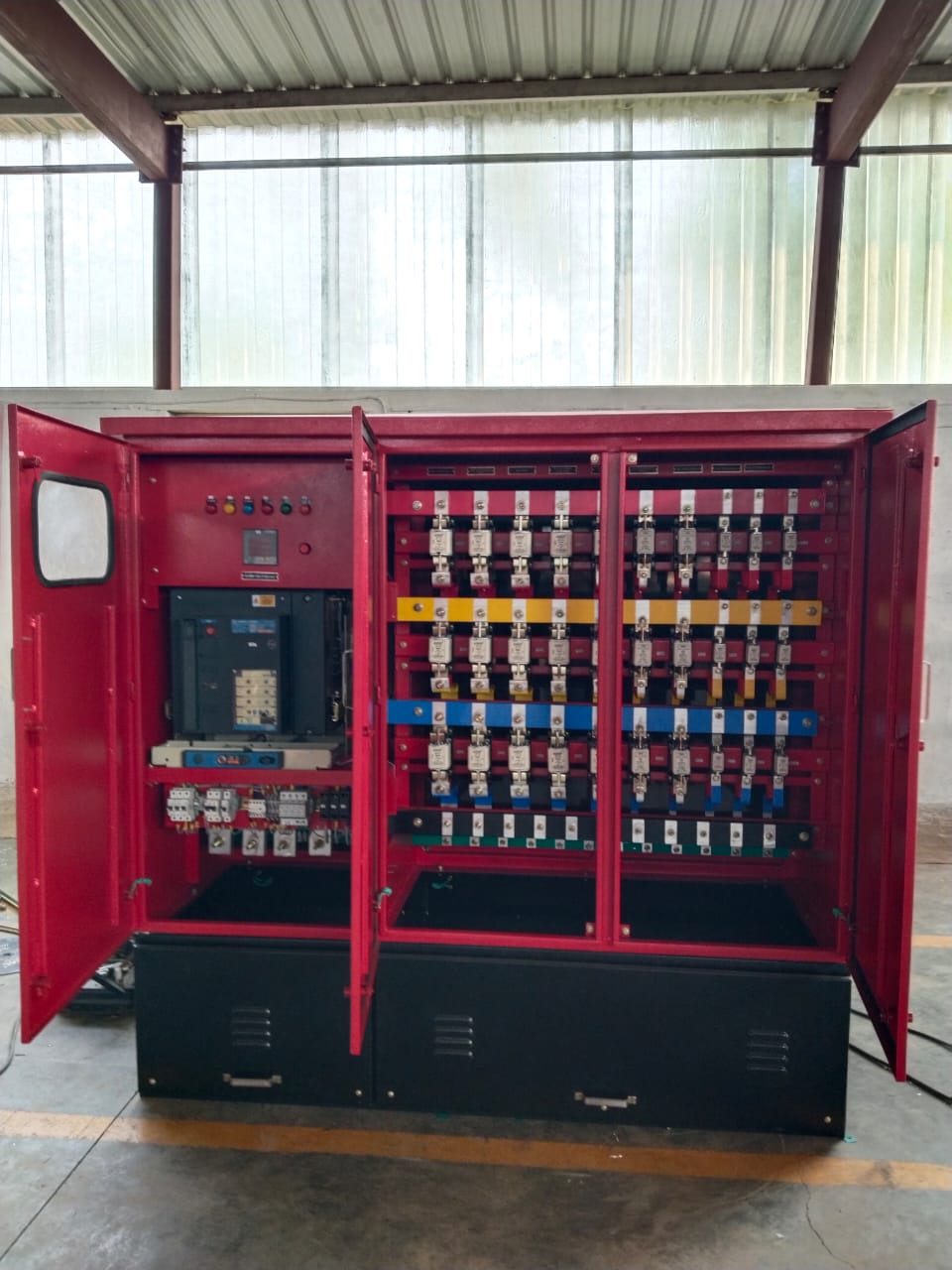

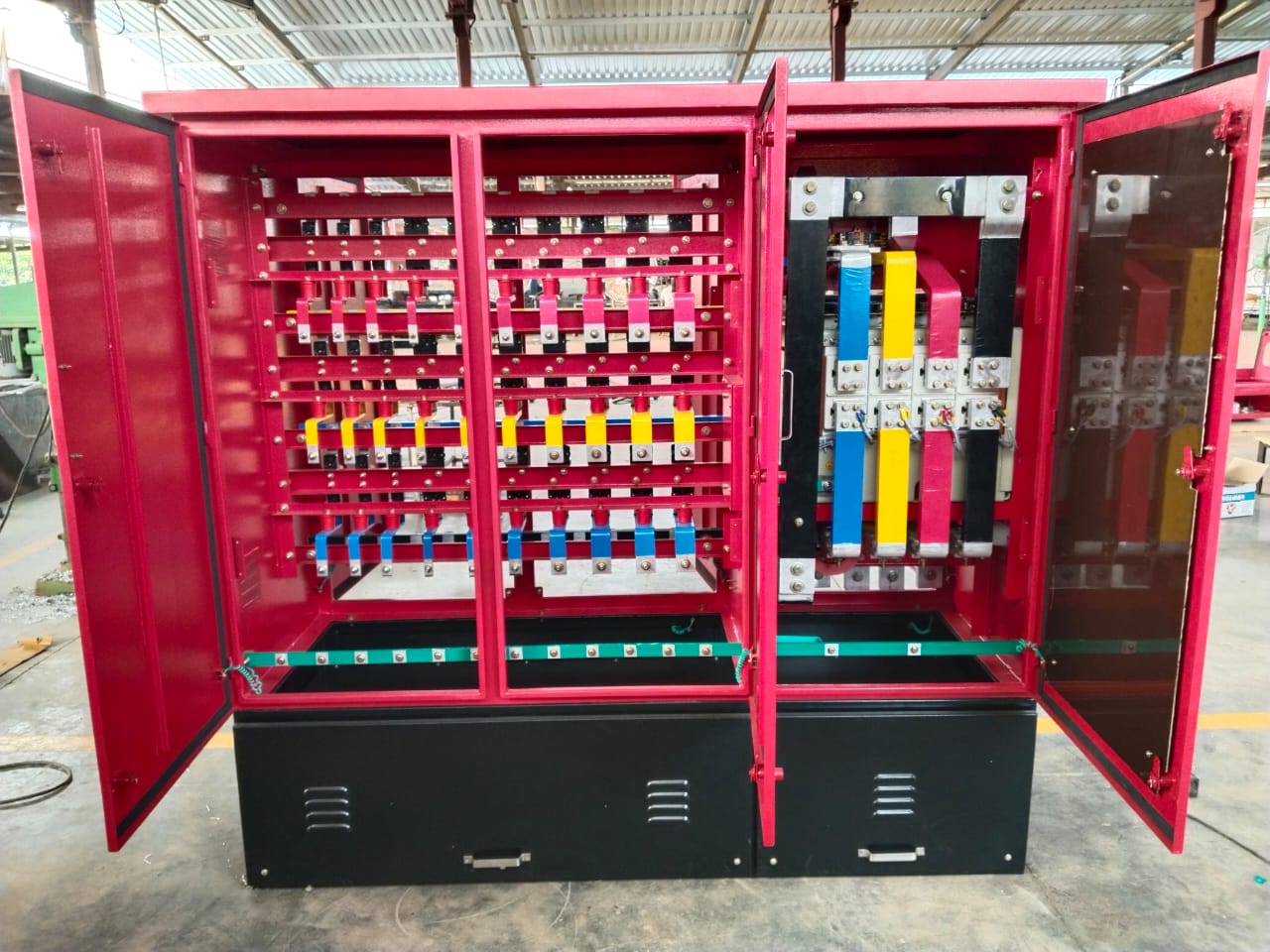

- Busbar System
- High-conductivity copper / aluminum busbars.
- Short-circuit withstand capacity up to 25kA / 50kA/ 65KA
- Fully insulated with heat-shrink sleeves / PVC shrouding.
- Protection Devices
- ACB, MCCB, MCB, RCCB, RCBO, ELCB as required.
- Comprehensive fault protection – overload, short-circuit, and earth fault.
- Provision for digital / multifunction metering.
- Wiring & Termination
- Wiring with PVC-insulated copper conductors as per IS standards.
- Ferruled wires with proper lugs and crimping.
- Cable entry provision from top / bottom as per site requirement.
- Standards Compliance
- Designed and manufactured in accordance with IS 8623 / IEC 61439.
- Degree of protection as per IEC 60529.

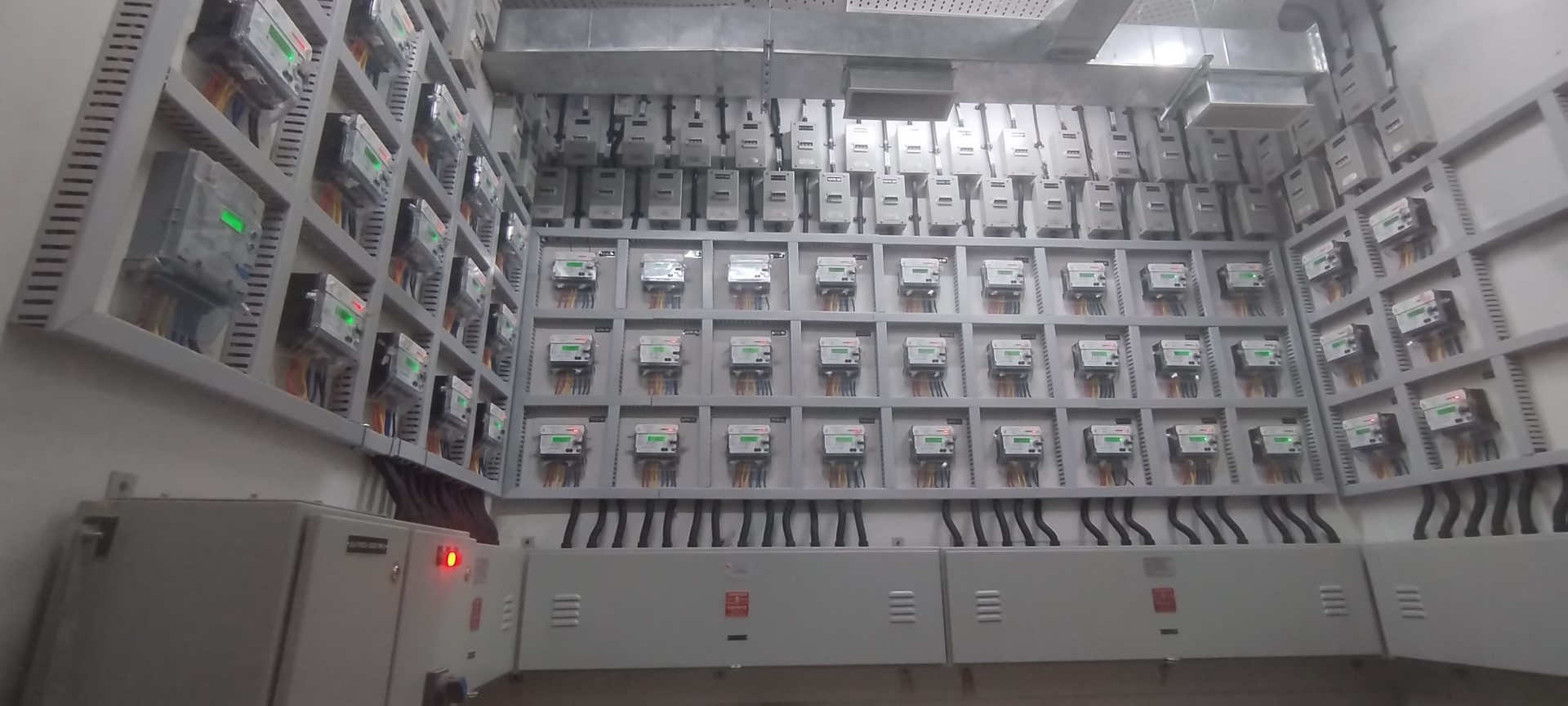

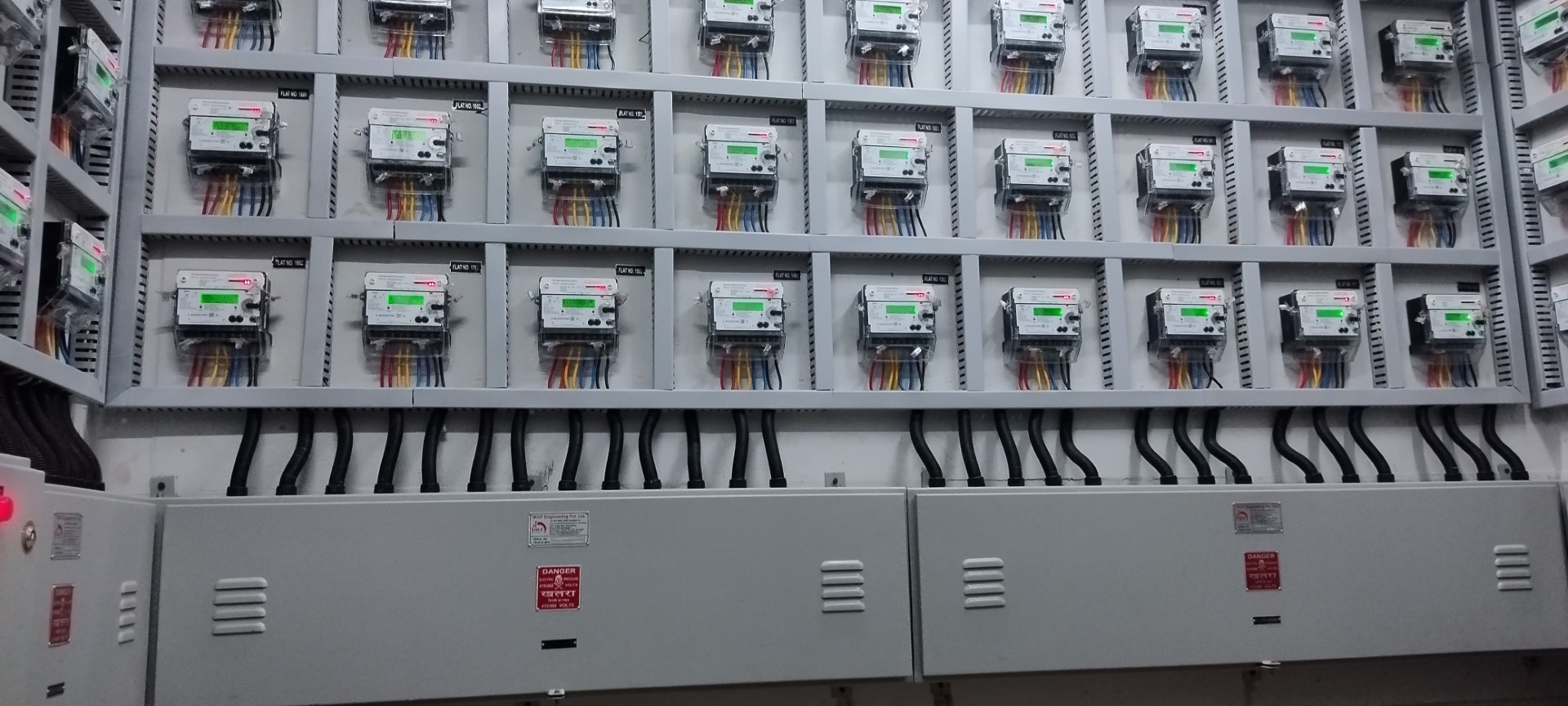

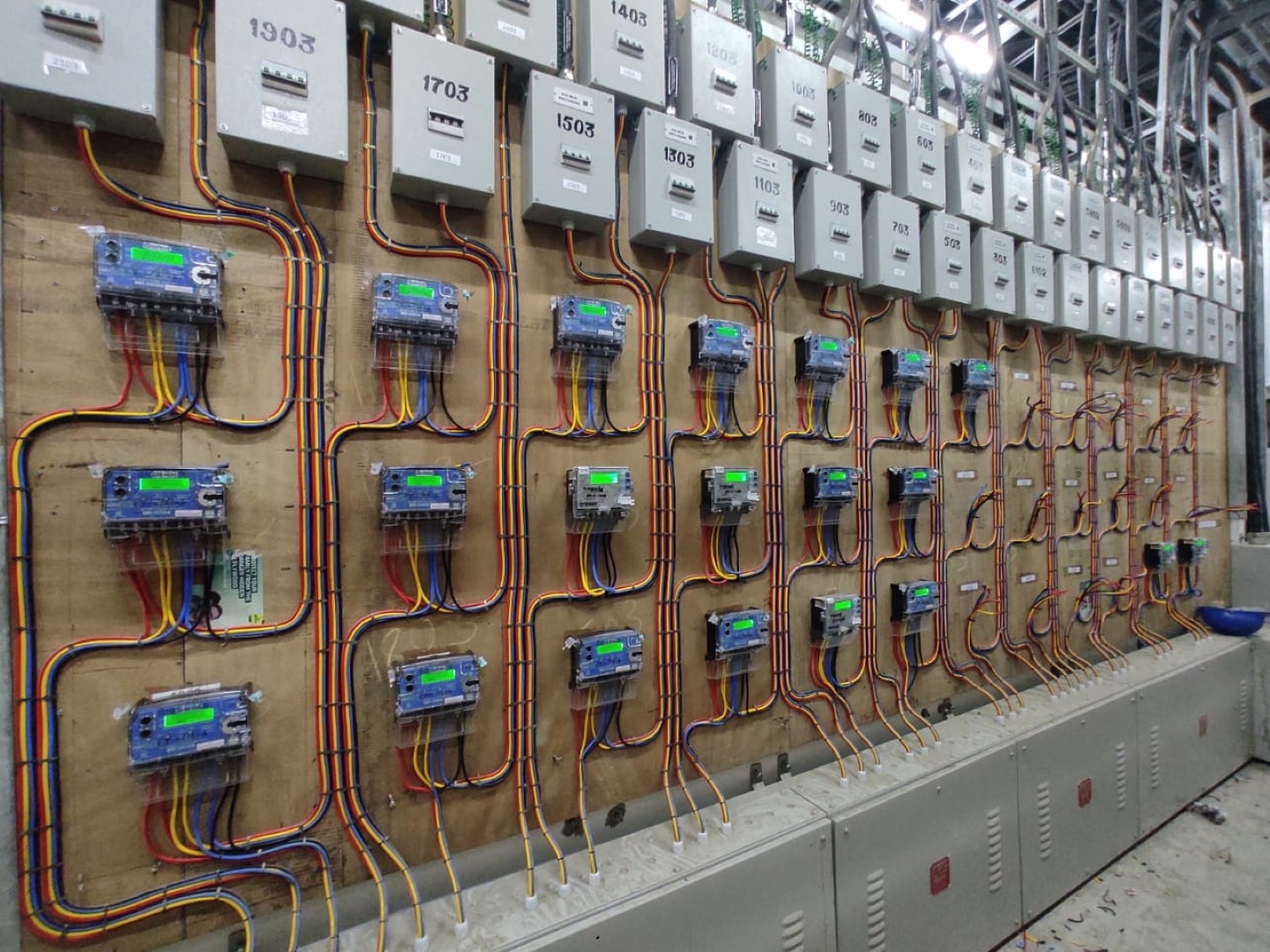

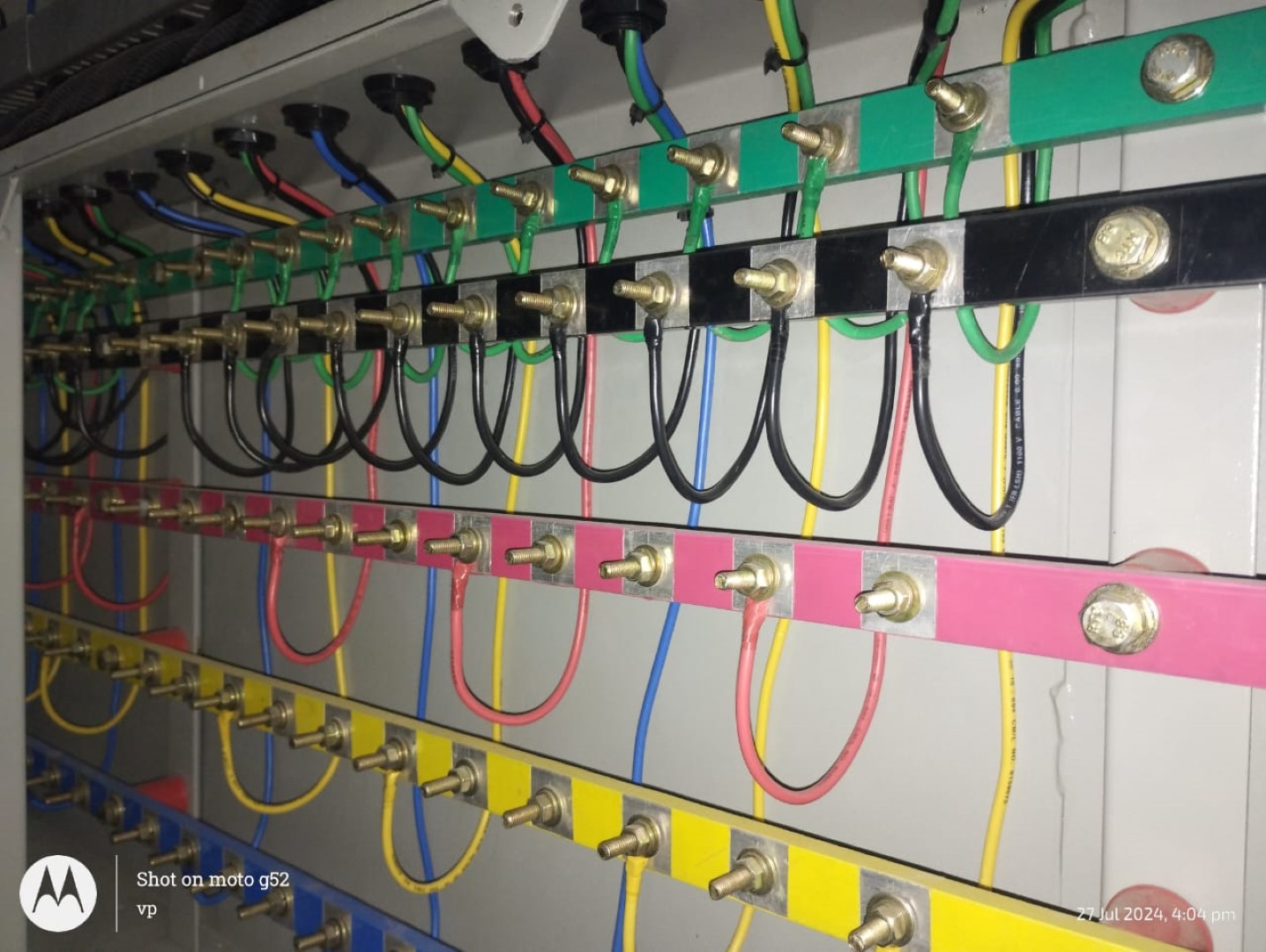

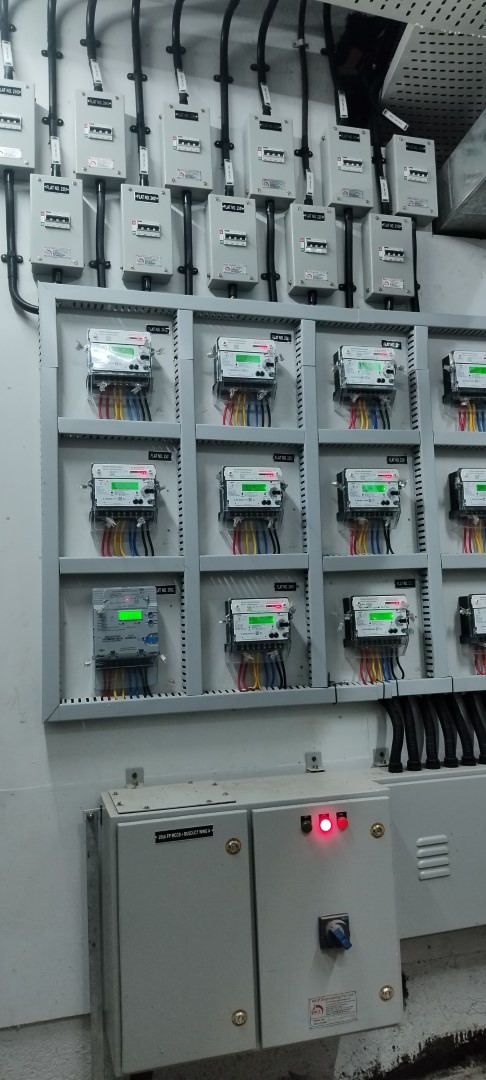

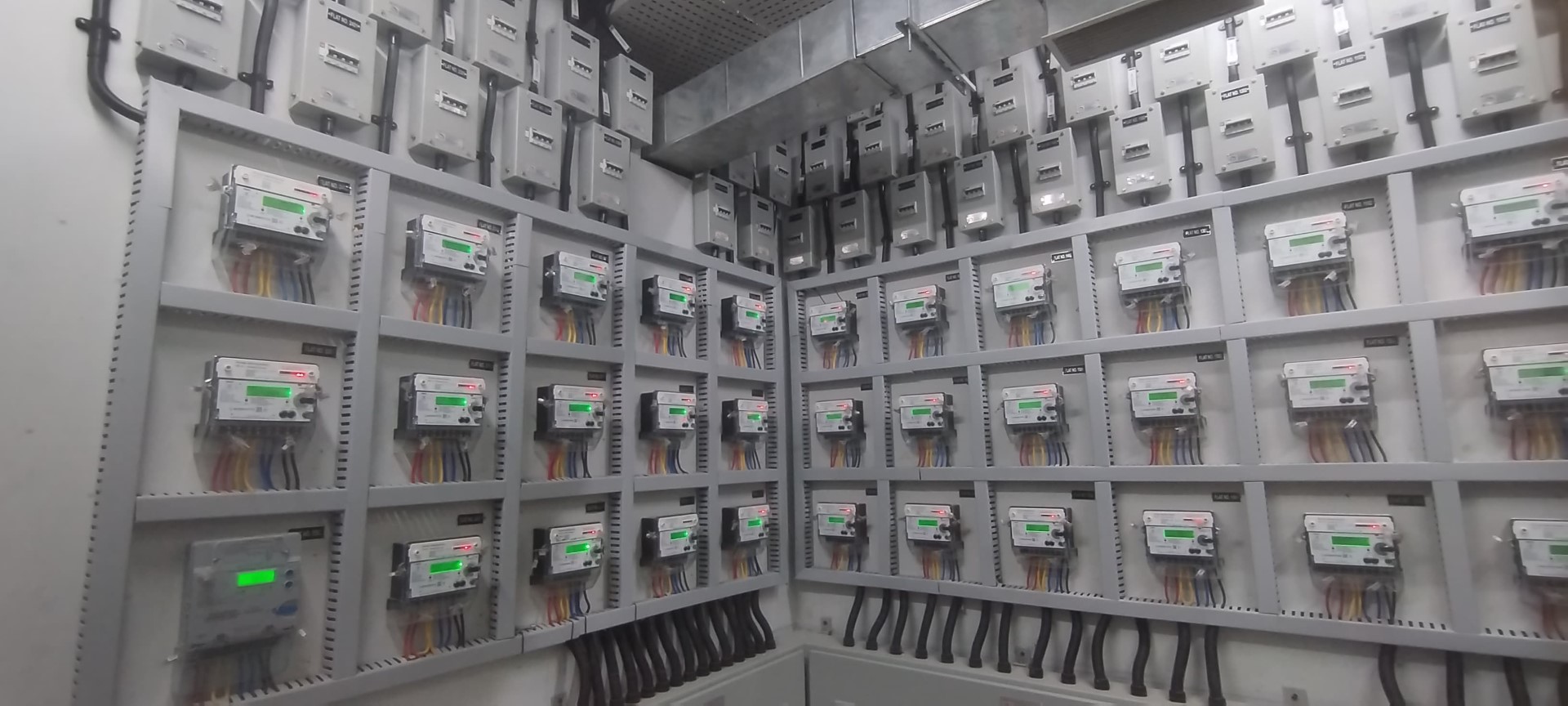

Meter Room
We provide centralized electrical meter room installations designed for accurate energy metering, structured cable routing, and safe load distribution, fully compliant with electrical and utility standards.
🛠️Need Custom Sizes or Finishes?
We offer complete custom fabrication services to meet your exact specifications. Upload your drawings or contact us to get started.
[🔗 Request Custom Quote] – Linked to RFQ Form
🛠️Customized Products
At MGP Engineering Pvt Ltd, we offer custom-built enclosures tailored to your specifications at competitive prices. Our expert team can manufacture enclosures using CRCA sheets, with options for smooth or textured powder-coated finishes, ensuring durability and aesthetics.

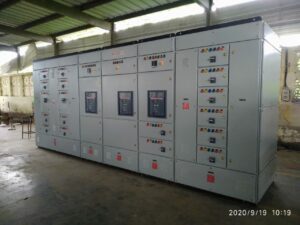

⚙️Technical Specifications
Overall Specifications
- Fabrication: 14 & 16 SWG CRCA sheet, powder-coated
- Busbar: E91E grade, TPN insulated aluminium or copper
- Rated Service Voltage: 415 V
- Rated Frequency: 50 Hz
- Rated Insulation Voltage: 660 V
- Busbar Systems: TP-E or TPN-E
- Busbar Rating: Up to 4000 A
- Fault Withstand Capacity: Up to 70 kA for 1 second
- Protection Degree:
- IP-52 for indoor applications
- IP-55 for outdoor applications
General Features
- Precision fabrication using CNC machines
- Modular design for ease of expansion
- Powder-coated enclosures for corrosion resistance
- Rear or front access options available
- Flexible cable entry (top or bottom) in rear-access panels
- Enhanced heat dissipation due to optimized busbar configuration
- Easy busbar maintenance
- Site-upgradable busbar systems
- Optimized dimensions for space-saving installations
✅Testing and Quality Assurance
All our panels undergo routine testing as per IS:8623/ IS-61439 standards, including:
- Insulation Test at 415 V
- Wiring Inspection & Operational Tests
- Protective Measure Verification
- Relay Testing & Setting
- Dielectric Tests at high voltage
These stringent checks ensure every panel is safe, durable, and reliable for long-term performance.
🔧After-Sales Support
We are committed to customer satisfaction beyond delivery. For any product-related issues, our dedicated service engineers are ready to respond within 24 hours, ensuring minimal downtime and uninterrupted operations.
